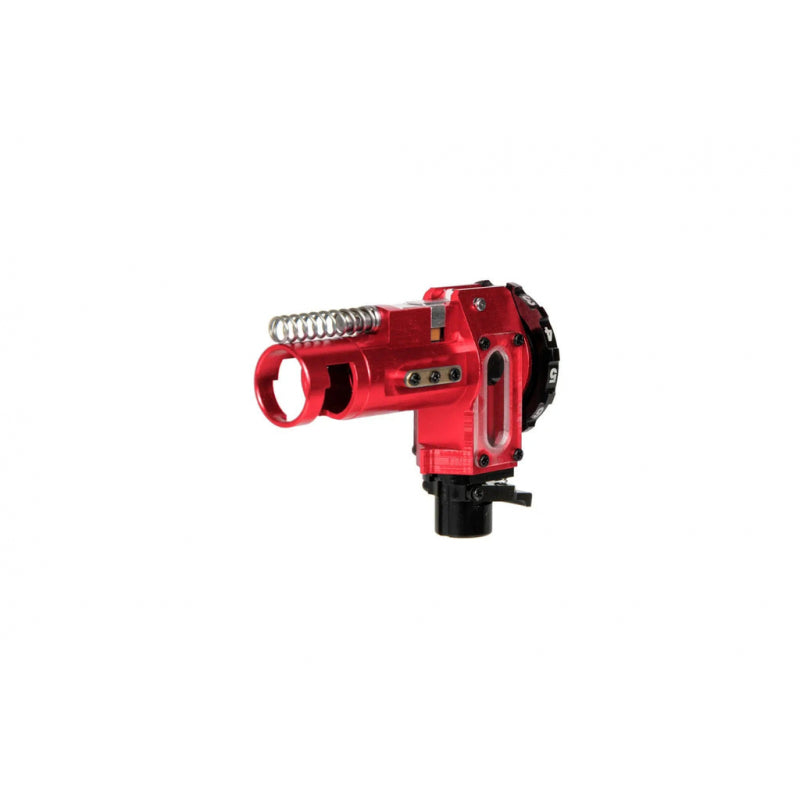

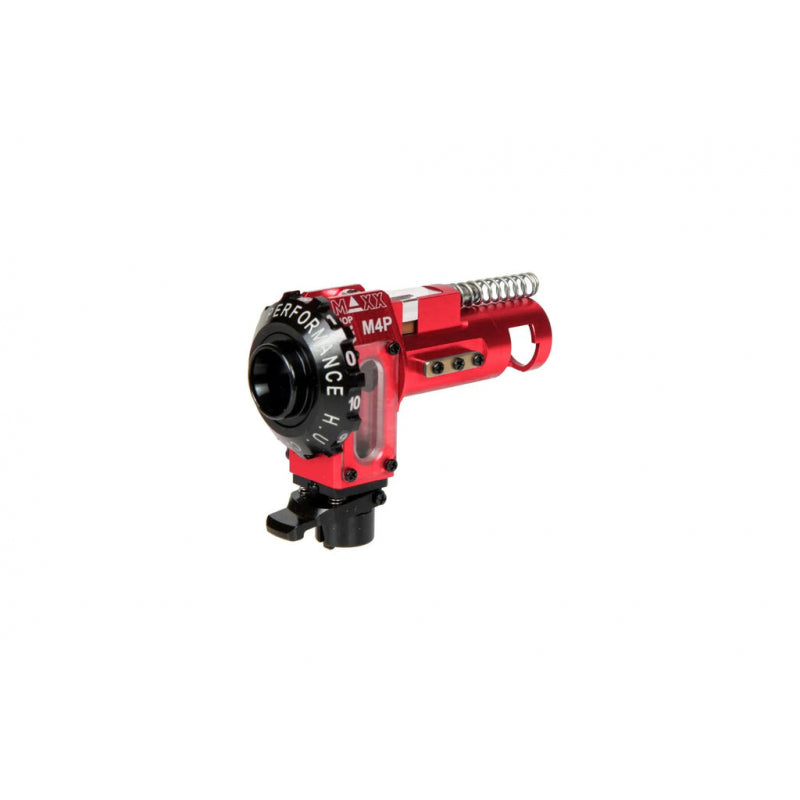

MAXX MODEL CNC HOPUP CHAMBER M4A PRO

MAXX MODEL CNC HOPUP CHAMBER M4A PRO

Quality Hop-Up chamber for Tokyo marui, G&G & Krytac

Specifications:

• For: M4 / M16 TM, Krytac and G&G Replicas
• Material: aluminum 6061
• Weight: 20g
• Color: ed
• Manufacturer: Maxx Model Products
• Length: 51.65mm
• Height: 37.75mm
• Hub Outer Diameter (for the gearbox): 11mm
• Hub Outer Diameter (for the outer barrel): 12mm
• Hub Inner Diameter (to the nozzle): 8mm
• Feeder Outer Diameter (for magazine): min 8.85mm
• Feeder Length (for magazine): max 6mm
• Execution: Aluminum 6061

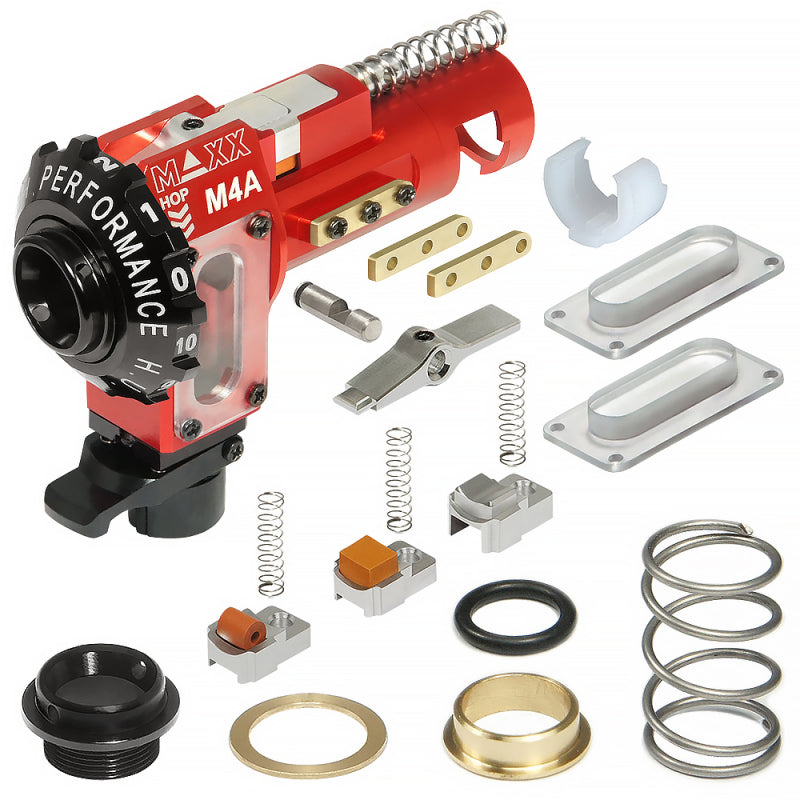

The set includes:

1 x CNC chamber with BB Latching system
2 x clear CNC vinyl covers
2 x 2.5mm CNC Brass Side Wing
1 x Steel CNC Pivot Pin
1 x HopUp CNC aluminum arm
1 x Aluminum Soft Round Nub CNC
1 x Aluminum Soft Flat Nub CNC (4mm)
1 x Aluminum Hard Concave Nub CNC (4mm)
3 x steel Nub Spring
1 x steel CNC jump guide
1 x steel top compression spring
1 x steel central compression spring
1 x Delrin Locking CClip CNC
1 x Brass CNC Barrel Spacer
1 x Brass Spacer Holder Oring
1 x CNC aluminum adjustment knob
1 x Aluminum Inlet CNC Adapter (11mm)
1 x Brass Inlet Spacer CNC
