CNC Alu HopUp M4W - Pro

CNC Alu HopUp M4W - Pro

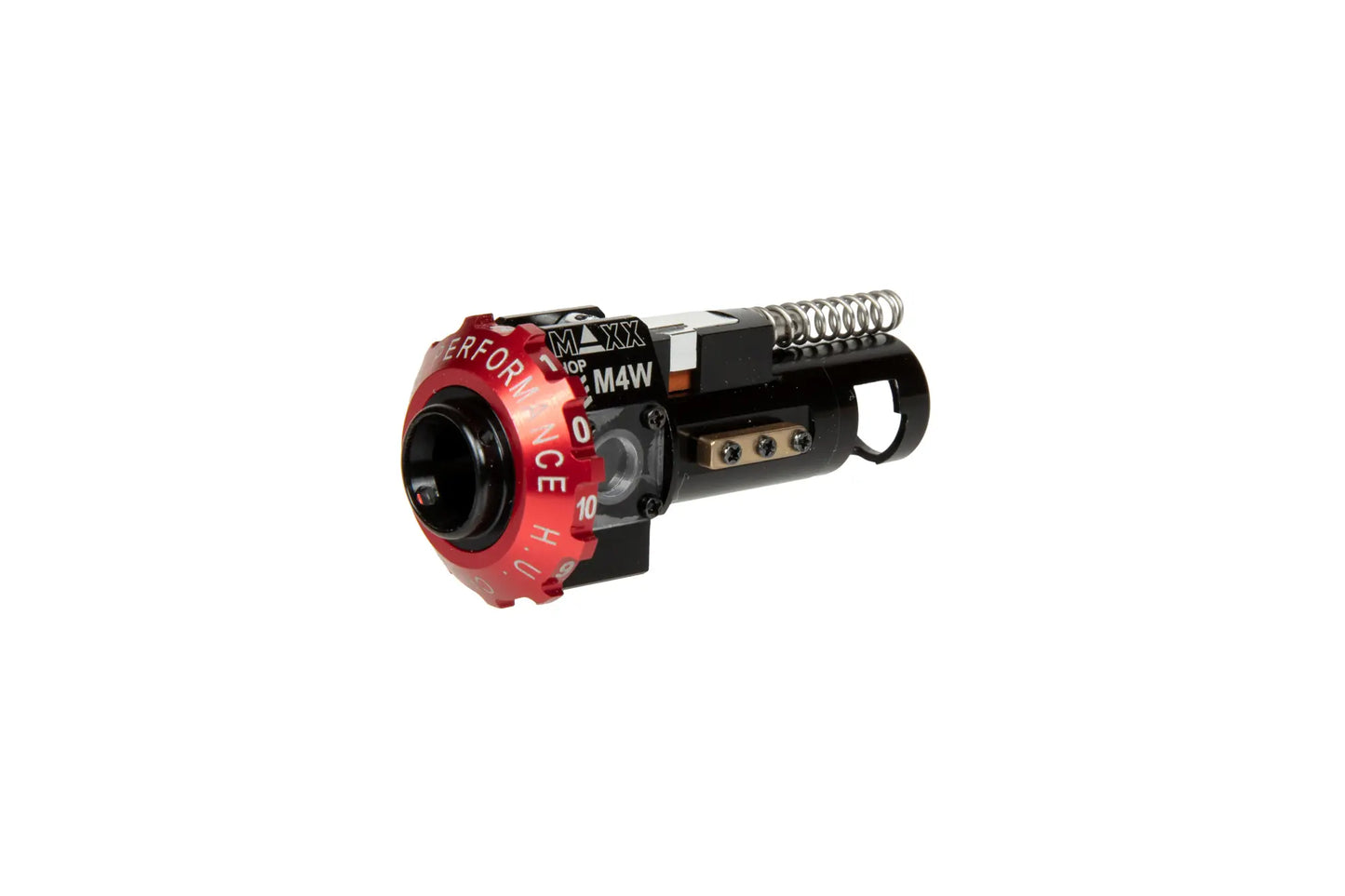

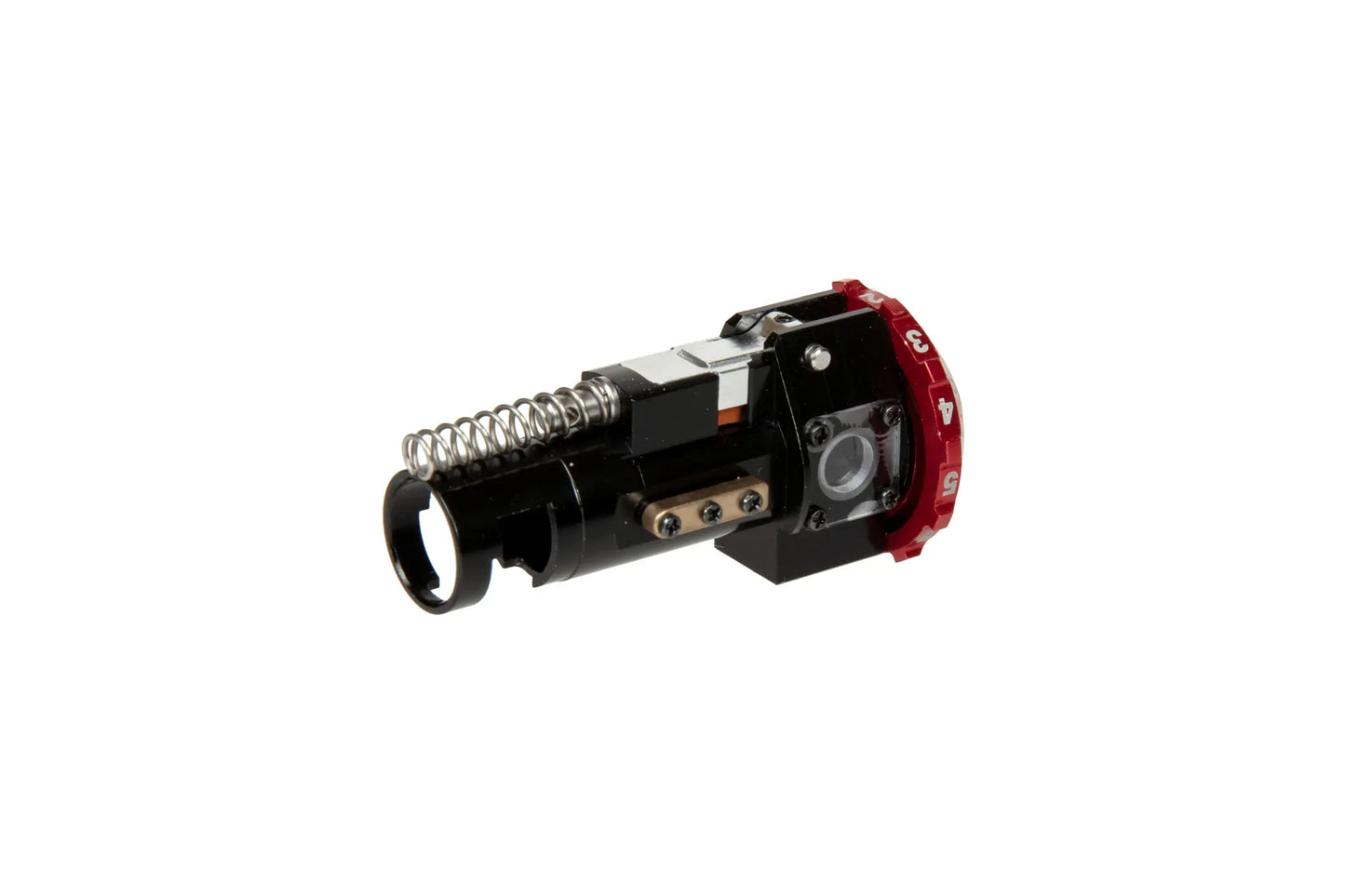

CNC Aluminum Hopup Chamber M4W - PRO

The highest quality Hop-Up chamber designed for HPA MTW / MTW-9 replicas. Rotary chambers manufactured by Maxx Model Products are made for the most demanding of players, they offer precise workmanship that is unprecedented on the market and perfect operation of the HU system in the replica.

Features:

- precisely made of a block of aviation aluminum using CNC technology
- compatible with HPA MTW Milspec, Forged, Billet and MTW-9 series replicas
- rotary knob for adjustment
- redesigned precise HopUp and 4mm Bucking Nubs levers (6mm versions are optional), ensuring trouble-free operation with standard and R-hop elastics
- Removable steel Pivot Pin for setup and maintenance
- compatible with nozzles from HPA MTW in the M4 standard
- full compatibility with most soft and hard HU elastics available on the market, with zero FPS drops and balls falling out
- equipped with a special CNC Delrin Locking C-Clip, preventing vibration and barrel movement
- equipped with 2 compression springs at the top and in the middle of the chamber, ensuring a perfect and secure fit in the replica
- equipped with an 11mm Inlet Adapter for the gearbox (11.5 and 12mm versions available separately) to ensure the central arrangement of the nozzle in the chamber and reduce wobble
- replaceable brass side wings to improve the fit of the chamber in the outer barrel
- possibility of mounting the BB tracer module (not included)

Specification:

Length: 51.15mm
Height: 22mm
Adapter Outer Diameter (for the gearbox): 11mm
Hub Outer Diameter (for the outer barrel): 12mm
Hub Inner Diameter (to the nozzle): 8mm
Made from: Aluminium 6061

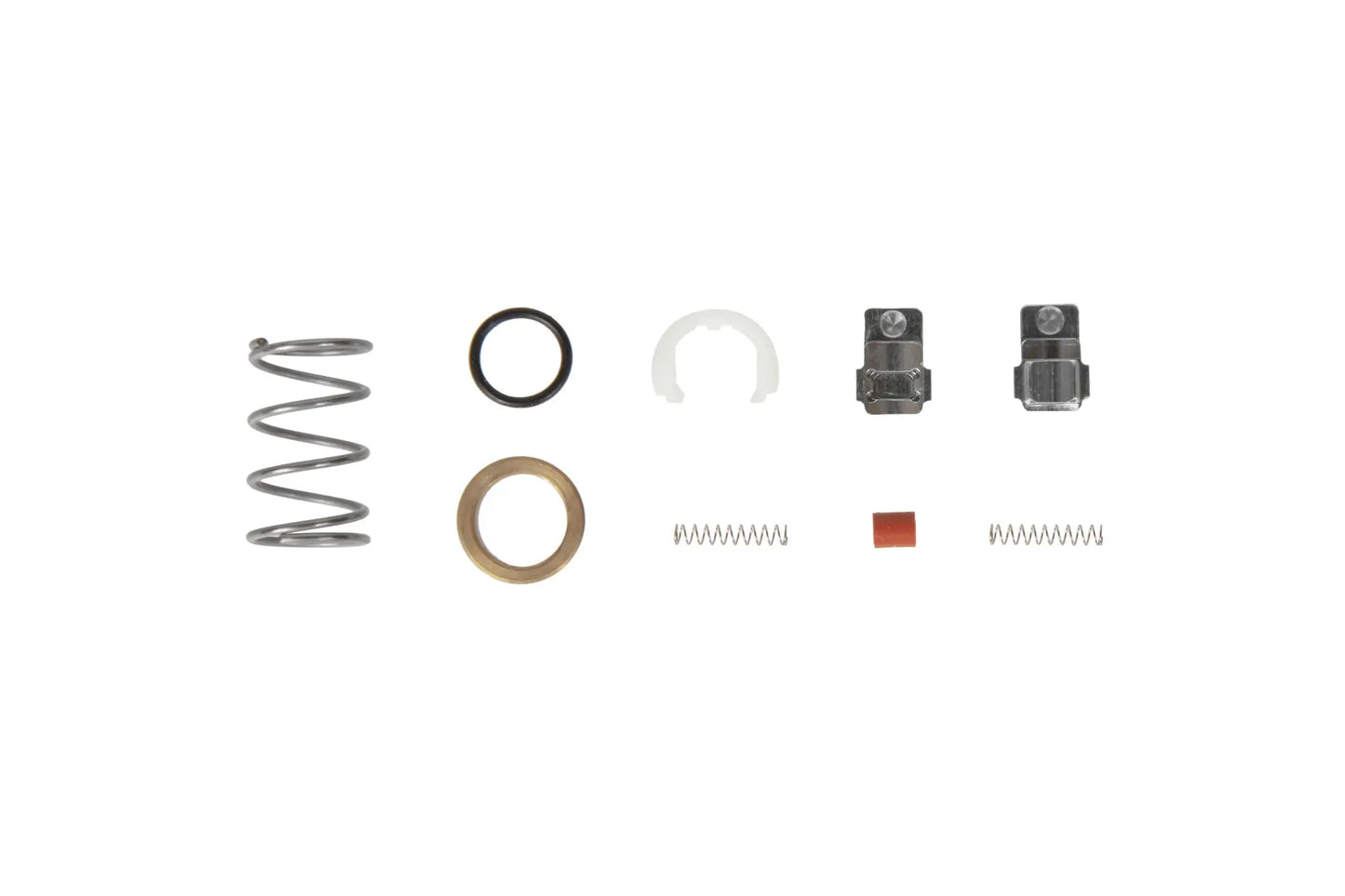

The set includes:

1 x CNC chamber with BB Latching system
2 x clear CNC vinyl cover
2 x 2.6mm CNC Brass Side Wing
1 x Steel CNC Pivot Pin
1 x HopUp CNC aluminum arm
1 x Aluminum Soft Round Nub CNC
1 x Aluminum Soft Flat Nub CNC (4mm)
1 x Aluminum Hard Concave Nub CNC (4mm)
3 x steel Nub Spring
1 x steel CNC spring guide
1 x steel top compression spring
1 x steel central compression spring
1 x Delrin Locking C-Clip CNC
1 x Brass CNC Barrel Spacer
1 x Brass Spacer Holder Oring
1 x CNC aluminum adjustment knob
1 x Aluminum Inlet CNC Adapter (11mm)
