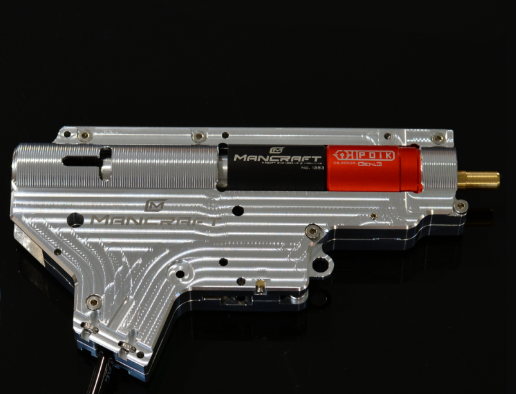

PDiK Gen.3 V2 Gearbox
Conversion kit was developed with the aim of sniper rifles - where is the need for long range and precision shot .
Mechanics:

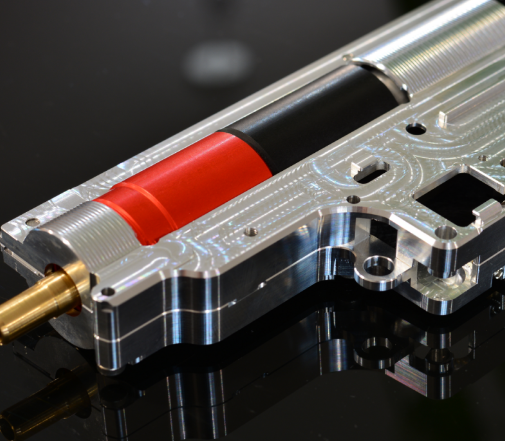

Conversion has independently movable nozzle - just like in the AEG rifles. Location of Nozzle is not directly linked to the location of the gas supply element. This solution makes that - when conversion taking a shot, nozzle (when the gas starts to move towards the ball) is stationary in the Hop Up chamber . Because of that, here is the better focus and precision of shot.
This type of nozzle has a great advantage - arranged axially relative to the eraser Hop Up. This solution makes the rubber less worn and is usually better sealed with.
PDiK works in semi-auto fashion. This is the only mode available in the conversion kit.
The conversion is large adapted to the needs of the sniper. Since it is possible here to get quite high fps - auto mode does not occur.
When using the appropriate regulator, it is possible to obtain a very stable, high fps . Power ice cream adjusted by the regulator . Operational pressure is in the range 7-16bar.
Advantages:
- No electronics (resistance to weather conditions)
- No batteries
- Precision of the FPS
- No full auto mode - no worries about mad people with full auto;)
- Adjustable FPS
- Compatible with standard AEG parts (nozzle, trigger, selector plate)
- External power (many shots)
- Immediate response to the trigger
Cons:
- No full auto mode
- External power (from a bottle)
Examples of the velocity (barrel length of 550mm, ball 0.2g):
8 bar - 150m/s (492fps)
10bar - 165m/s (541fps)
12bar - 182m/s (597fps)
16bar - 203m/s (666fps)
18bar - 213m/s (699fps)
Set includes:
- PDiK
- About 1.2m supply hose (fi 6mm)
The kit does not include:
- Trigger
- Trigger lock
- Selector plate
- QD Connector
